TMS KD30

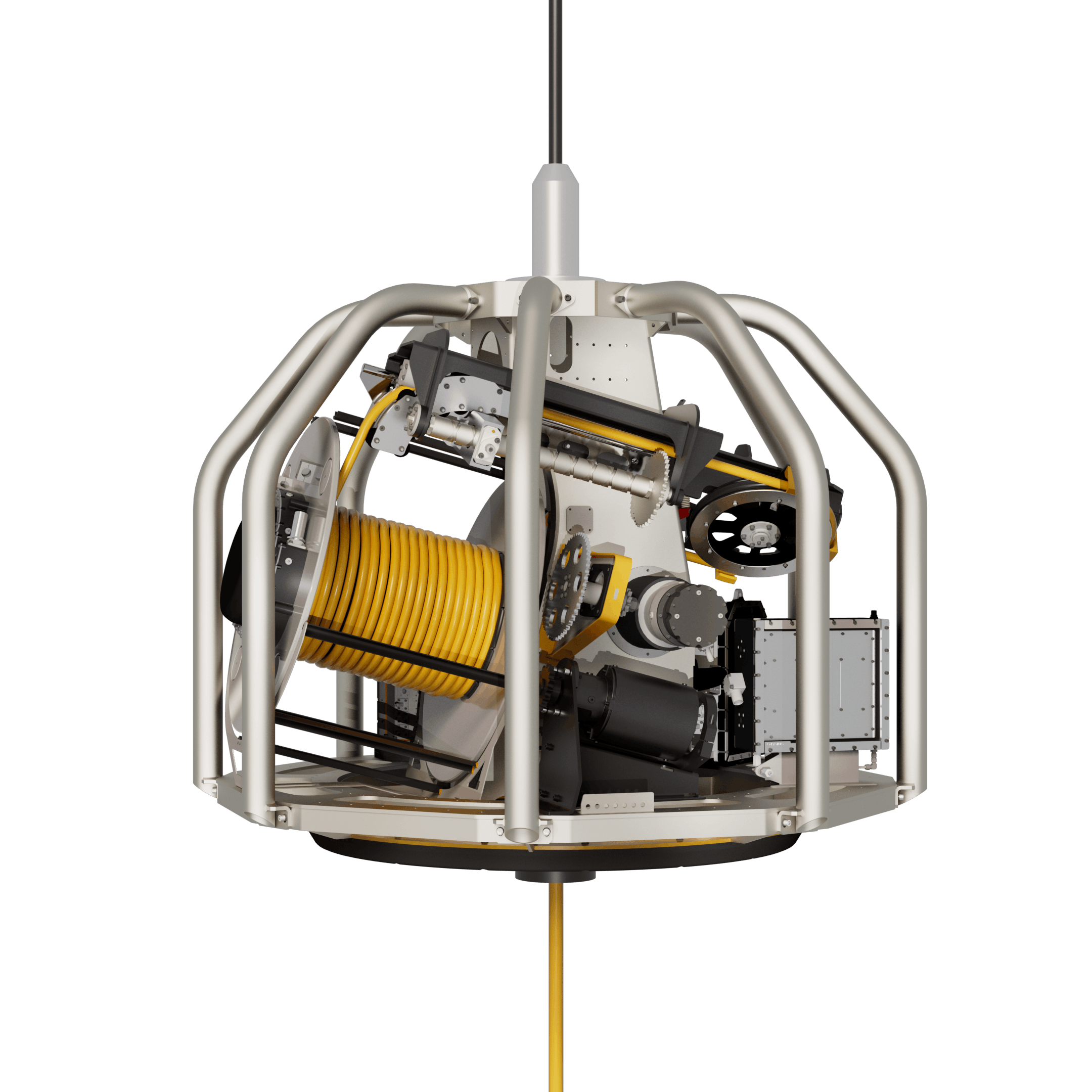

The KD30 TMS is an Electrical Tether Managment System (TMS) with tether capacity of 412m Ø28mm tether.
Key specifications
- Max width: 2200 mm
- Min. width: 2040 mm
- Height: 1640 mm
- Depth rating: 3000 msw (optional 6000 msw)
- SWL liftpoint: 9500 kg
- SWL latch: 7000 kg
- Tether capacity: 412 m
- Min. tether bending diameter: 212,5 mm
- Weight in air: 2190 kg (incl. 330 m tether)
- Weight submerged: 1450 kg (incl. 330 m tether)
