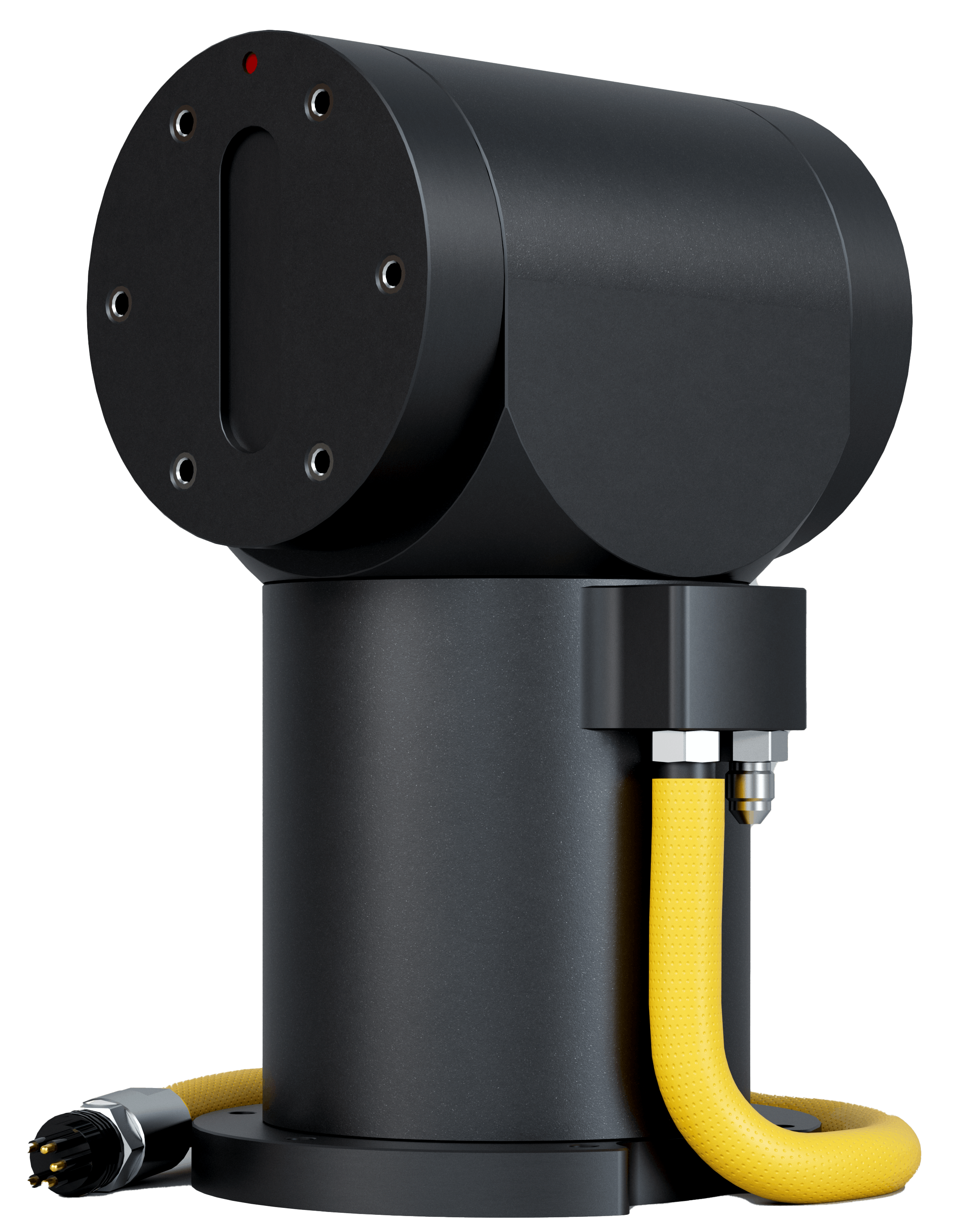

KPT-45
Designed for continuous hard use on Work Class ROVs at full ocean depths. Equipped with absolute position sensors there is no need to find end-stops at start-up. Withstands heavy payloads without compromising with absolute accuracy. To be connected to an external compensator.
Technical
Specifications
Input Voltage:
24 – 48 VDC
Angular Limits:
Pan range: ± 175° Tilt range: ± 175° (depending on yoke)
Operating Depth:
Down to 11,000 m (36,100 ft)
Angular Speed:
Up to 30 deg/sec (Pan and Tilt simultaneously)
Weight In Water:
5.4 kg (11.9 lbs) (Aluminum unit)
Torque:
90 Nm holding torque – 75 Nm (55 lb/ft) < 8 deg/sec- 60 Nm (44 lb/ft) < 15 deg/sec- 45 Nm (33 lb/ft) up to 20 deg/sec
Size (H/W/D):
260 x 160 x 114 mm (Flange Ø147 mm)
Max Payload:
150 kg (330 lbs
Other features
- Compact single axis unit
- Rugged construction and mounting holes
- High torque – heavy payloads can be attached
- 22 Nm (16.2 lb/ft) holding torque
- RS-232 or 100 Mbps Ethernet
- Absolute position sensor
- ± 0.1 deg. accuracy; ± 0.01 deg. on request
- 24 to 48 VDC input voltage range
- No rotating connector at unit
- External compensator interface
- Design tested to 11,500 m (36,730 ft)
Certified for the deepest depths of the ocean.
Our Pan & Tilt units have now been certified for operation at the deepest known points of the ocean, reaching depths of up to 11,000 msw. Read more about the certification here.
