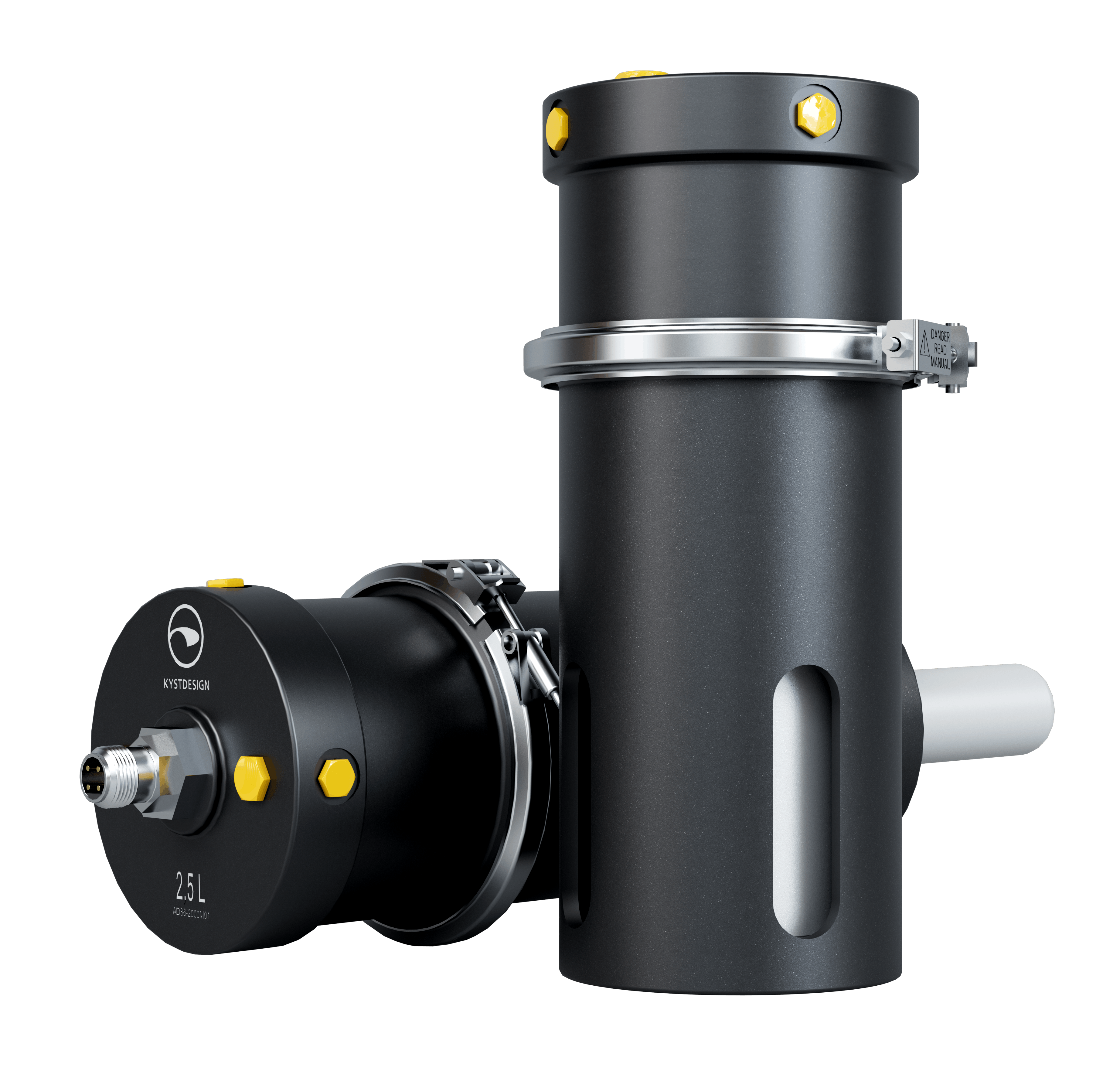

Hydraulic
Compensator
2,5 L
![2,5L hydraulic compensator](https://kystdesignstg.imgix.net/2024/07/25-compensator.png?auto=format%2Ccompress&crop=faces&ixlib=php-2.1.1)
Maintain a raised pressure in a fluid circuit related to ambient at all water depths.
The function of the compensator is to maintain a raised pressure in a fluid circuit related to ambient at all water depths. This is achieved by a spring acting on a rolling diaphragm, i.e. the connected fluid circuit will always see a pressure equal to ambient sea water pressure plus the pressure generated by the spring.
Use of rolling diaphragm instead of piston is a great advantage to reduse hysteresis in the
compensation system. The compensator is provided with an interface that allows easy installation
and stacking. Optional analog volume sensor is available. Even without volume sensor, the oil level
can be visually read through slots in the spring housing.
Technical Specifications
Operating Depth:
Full ocean depth (3000msw or 6000msw with sensor)
Volume:
2,45 Liter
Pressure:
0,25 – 0,60 Bar
Hydraulic Connections:
7 x 3/8” BSPP
