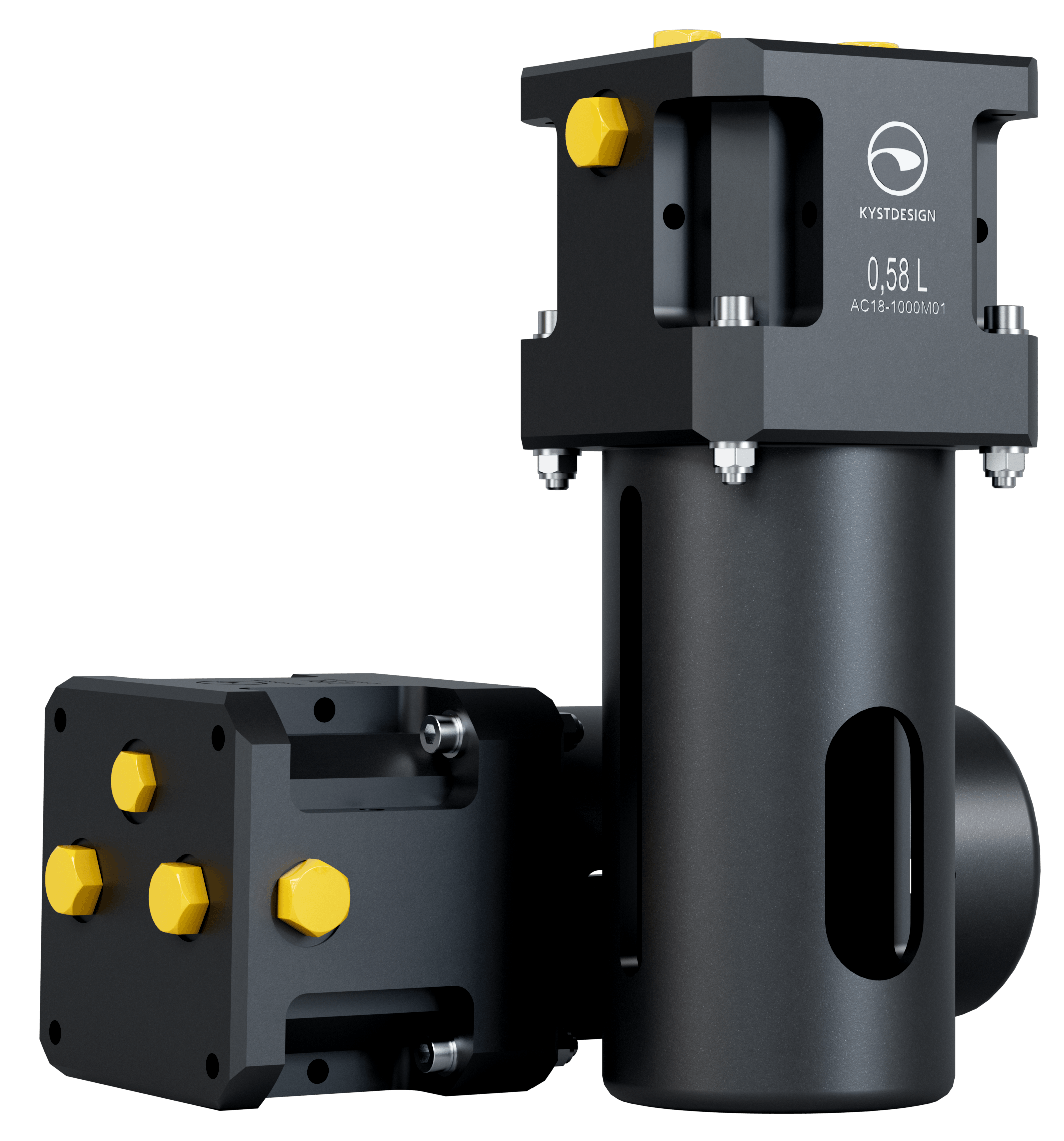

Hydraulic
Compensators
0,5 L
Maintain a raised pressure in a fluid circuit related to ambient at all water depths.
The function of the compensator is to maintain a raised pressure in a fluid circuit related to ambient at all water depths. This is achieved by a spring acting on a rolling diaphragm, i.e. the connected fluid circuit will always see a pressure equal to ambient sea water pressure plus the pressure generated by the spring.
Use of rolling diaphragm instead of piston is a great advantage to reduce hysteresis in the
compensation system. The compensator is provided with an interface that allows easy installation and stacking.
Technical Specifications
Operating Depth:
Full ocean depth
Volume:
0,58 Liter
Pressure:
0,20 – 0,55 Bar
Hydraulic Connections:
5 x 1/4” BSPP
