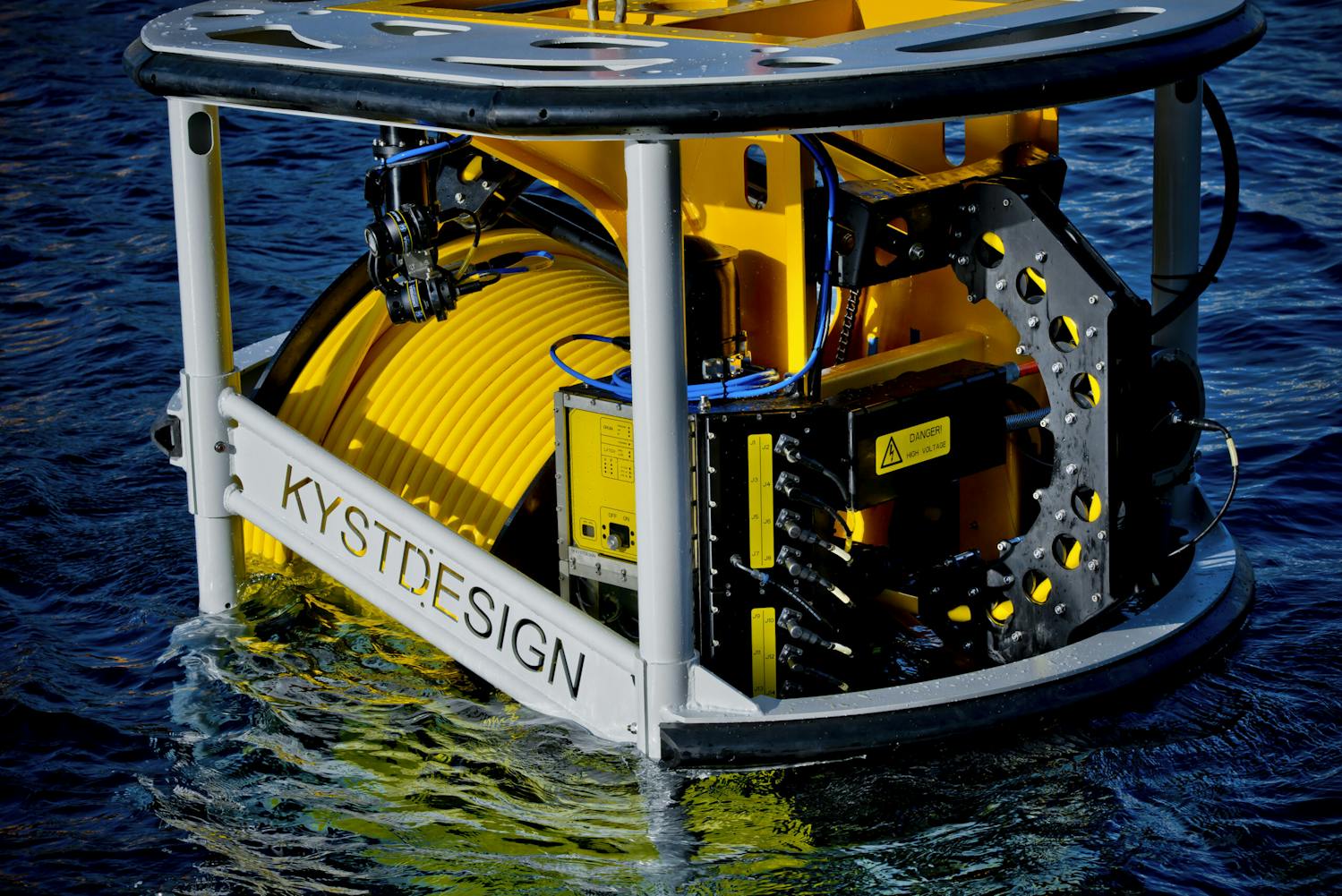

TMS KD10
The KD10 TMS is an Electro Hydraulic Tether Managements System (TMS) with tether capacity of 1000m Ø35mm tether.
The large diameter tension wheel together with tether force control and drum with lebus grooves ensures gentle and reliable handling of the tether.
KEY specifications
- Max width 2590mm
- Min width 2380mm
- Height 2438mm
- Depth rating up to 6000msw
- SWL liftpoint 12000 kg
- SWL latch 10000kg
- Tether capacity 1000m Ø35mm tether
- Min. Tether Bending Diameter 900mm
- Weight in air excl. tether 2480kg
- Weight submerged excl. tether 1650kg
