Constructor
compact
Drag to
rotate

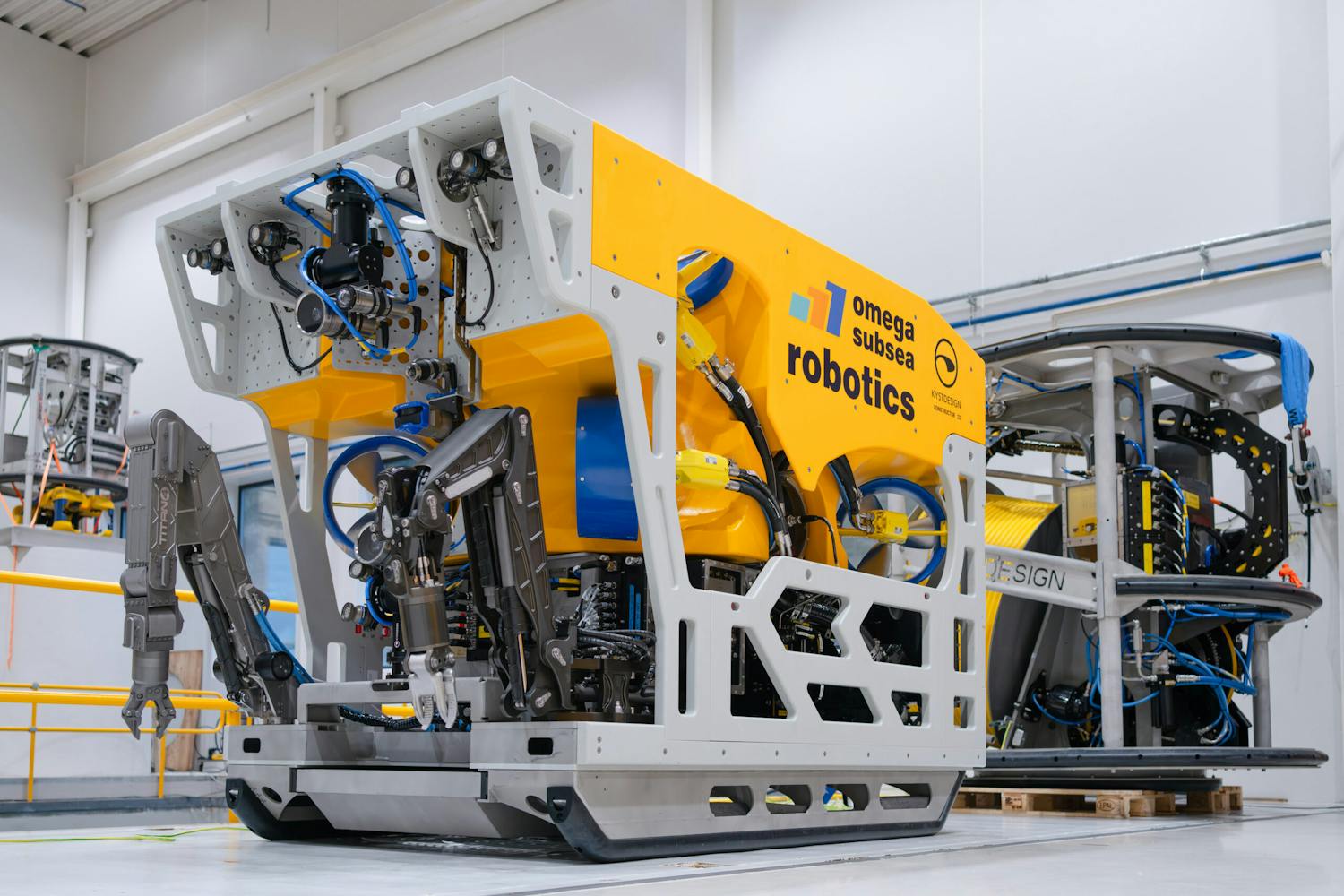

A compact version of our trusted Constructor ROV, with high-flow capabilities. The Constructor ROV is a powerful construction ROV uniquely designed to carry and operate large tools and modules.
Technical
Specifications
Power:
160 kW / 220 hp
Depth Rating:
3000 msw
Dimensions:
2845 / 1700 / 1870 mm
Weight:
~4400 kg
Payload:
>250 kg
Through Frame Lift:
3000 kg
Hands-on engineers
Our ROV technology is refined from years of operational and “hands-on” experience by our engineers.
The Constructor ROV accommodates up to 41 electrical connectors for interface of external equipment, such as tooling, survey sensors and cameras, and all electrical power supplies are ground-fault monitored. The ROV also accommodates 24 hydraulic functions, all proportionally controlled.
The ROV control system is prepared for a variety of auto functions like AutoPOS and AutoTRACK capabilities, in addition to over-the-horizon control from a Remote Operation Center (ROC) onshore.
