Camera
Boom

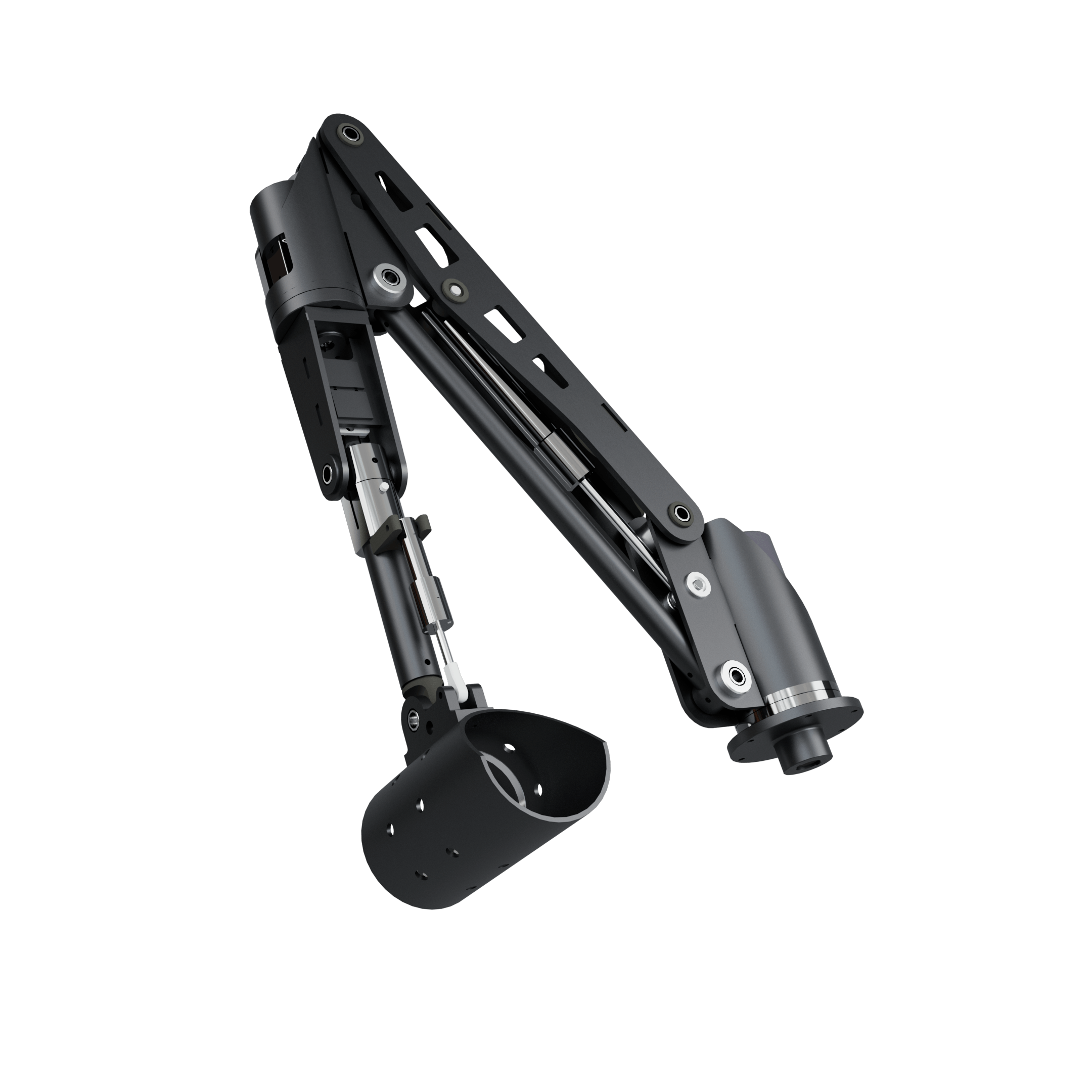

The Camera Boom is designed and built by KYSTDESIGN for pipe survey purposes. It is intended to be fitted with customer supplied video camera and lights. It has four hydraulic functions i.e. boom rotate, elevate, pan and tilt. The lower section will release and pivot on impact. The pivoting section is held into position by two strong magnets.
This allows the system to be used with multi beam sonars, which stream data directly on the physical layer. However, to expand number of ports and to simplify interfacing to other survey equipment, the local Gb switch provide the “plug and play” functionality. Backplane design together with all fibre units terminated to a single front plate LC fibre connector, enables easy system swap.Units comes with complete fibre diagnostics when used together with the KD-Con™ Video Multiplexer.
Key Specifications
- Dry weight of each boom 46 kg
- Boom Rotate 90º
- Elevate 1200 mm
- Pan 180º
- Tilt horizontal to -45º
- Max hyd. Pressure 200 Bar
- Ports on rotary Actuator (pos 8) 3/8″ BSP
- Ports on rotary Actuator (pos 9) 1/4″ BSP
- Ports on Hyd. Cylinder (pos 10) 1/4″ BSP
- Ports on Hyd. Cylinder (pos 11) 1/8″ NPT
A boom extension kit is available to extend item 3, 6 and 30 by 200mm.
Various types of interface brackets can also be supplied according to customers requirement.
