KD
Switch

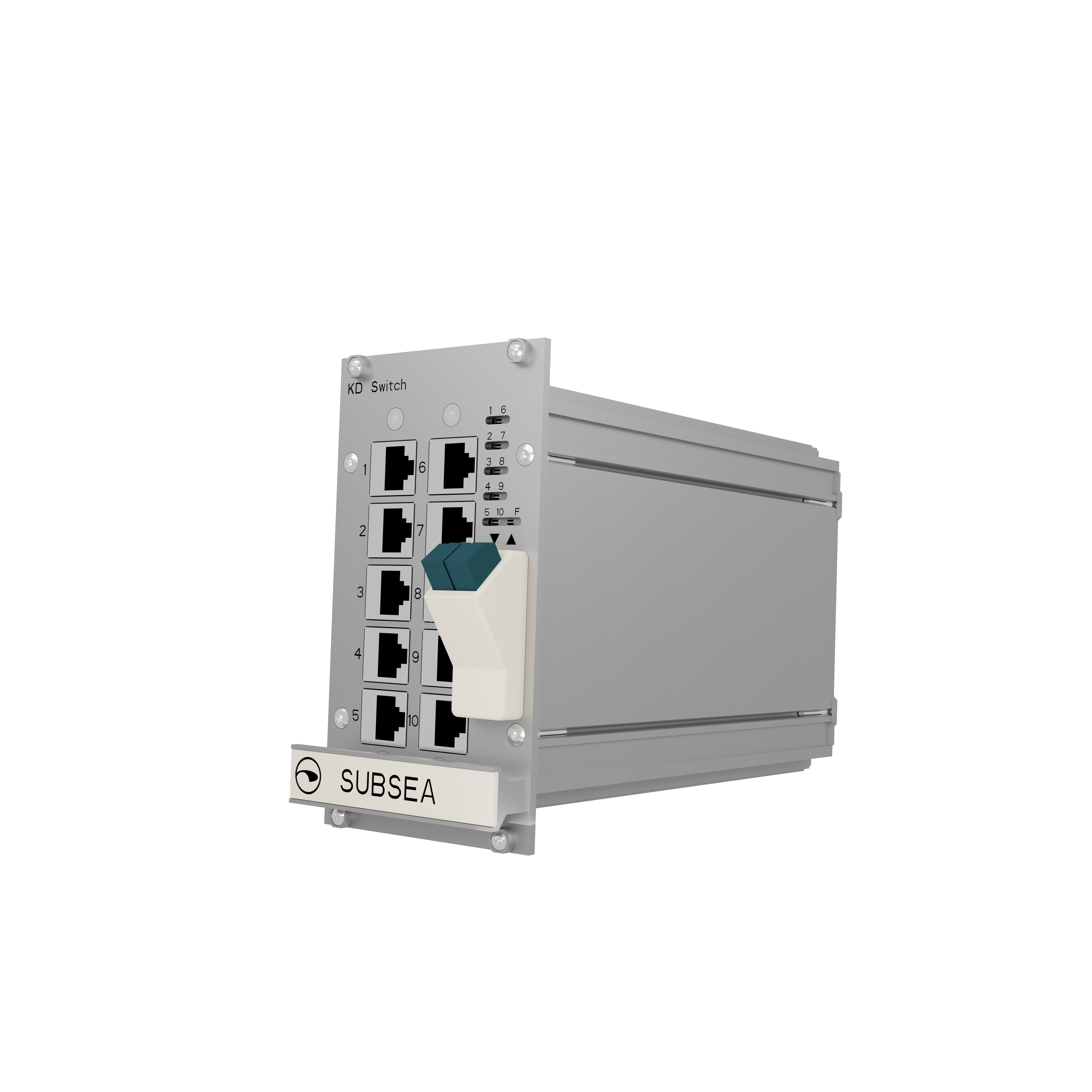

The KD Switch is a subsea rack mountable 10 port Gb-Ethernet switch with a 10 Gb fibre link backbone. The KD Switch links directly to the topside main switch using two spare CWDM passes in the ROV main fibre mux, hence doubling the ROV ethernet capabilities while maintaining the “one fibre takes all” solution. Backplane design enables easy system swap.
Features
- 10-port Gigabit Switch
- 10 Gb fibre link backbone
- Dual SM 9/125 LC Fibre Connector
- Voltage: 8-60 VDC
- Power Consumption: 7.2 W (idle)
- Supported Protocols: 10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-R
- Fibre Opt. Output Power: 0 to 5 dBm
- Fibre Opt. Output Wavelength: 1431 nm
- Fibre Opt. Receiver Sensitivity: -24 to -8 dBm
- Size: 3U, 14HP
